Automatic Capper

Hangzhou Shengde Machinery Co., Ltd. is one of the most professional manufacturers and suppliers of automatic capper in China. Welcome to wholesale customized automatic capper at competitive price from our factory. Contact us for cheap products and discount information.

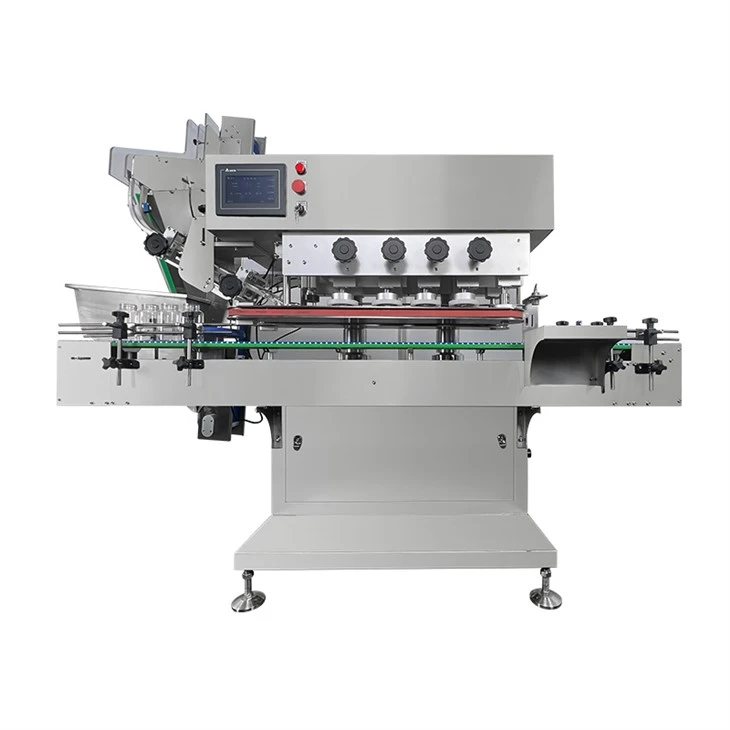

SED-4CG Automatic Linear Screw Capping Machine is suitable for plastic and metal screw cap, which can handle a wide range of bottles without any change-parts for different bottle sizes. Our capping machine consists of two main components: the cap screwing unit and the cap feeding system with hopper. This capping machine is very ideal for application in Pharmaceutical, Food, Beverage, Cosmetic and other industries.

Working Principle

The operator pours caps into the hopper, and the cap elevator sorts and lifts the caps and conveys them to cap loading position through a feeding chute. The conveyor belt brings bottles forward continuously, and a bottle separation device controls the distance between bottles. When the bottle passes through the end of the cap feeding chute, a cap is automatically applied. Then a cap pressing head presses the cap into a horizontal angle, ready for future screwing. The machine has four pairs of constantly spinning wheels. These spinning wheels rotate to tighten the cap. The first pair of wheels rotate in the opposite direction to adjust the cap, ensuring higher accuracy of capping. After the cap is screwed, the aluminum foil detection device automatically detects the aluminum foil in the bottle cap, and if there is no aluminum foil, the bottle will be automatically rejected.


Stainless steel body: The machine body is made of high quality 304 stainless steel, which is durable and resistant to corrosion and oxidation.

Automatic cap distribution in cap chute, designed for each specific individual cap and production speed.


Distinctively designed bottle separation mechanism controls the distance between bottles, improving the capping accuracy.


Cap-screwing wheel distance adjusting handwheel can be used to adjust the distance freely according to the diameter of cap to be capped. Depending on the diameter of bottle and cap, the operator can also freely adjust the distance of bottle clamping rails and cap feeding chute.


Aluminum foil detection device automatically detects the aluminum foil inside the bottle cap, and automatically rejects the bottles lacking aluminum foil. (This aluminum foil detection device is not applied for metal cap, and this function can be cancelled when applying metal caps.)


The distinctive feature of our screw capping machine is "no bottle no cap system "and "no change part required" for change in bottle size.

Hangzhou Shengde Machinery Co.,Ltd (Abbreviated as SED Pharma) is a pharmaceutical equipment supplier that providespackaging machinery and processingequipment to the pharmaceutical and biotech industry worldwide. Wehave supplied hundreds of pharmaceuticalcompanies all over the world. Our products are used in a variety ofapplications, including liquidinjectables, chemical API, bioengineering and pharmaceuticalpackaging. SED Pharma is dedicated to providingall clients with the highest quality products possible.

With over 20 years of R&D and manufacturing experience inpharmaceutical packaging equipment, we are ableto customize every product according to our clients' uniquerequirements such as special packagingcontainers, packaging materials, and filling methods.

We cooperate closely with well-known scientific researchinstitutions and pharmaceutical institutes toprovide relevant project designs, top-quality equipment andcustomized service to different companies. Ourobjective is to be your one-stop solution provider in the drugmanufacturing process!





Workshop

Workshop

Workshop

Workshop

Polishing

Installing

Testing

Assembly



SUPPLY SIDE WEST

PHARMEDI VIETNAM

GPMT in Guiyang

CPHI in Shanghai

PHARMA ASIA

CIPM IN Xiamen

CIPM IN Qingdao

CIPM IN Guangzhou



Follow Our Social Media

FACEBOOK

TIKTOK

YOUTUBE

INSTAGRAM

LINKEDIN

FAQ







CONTENT

01.What are your advantages?

* Has rich technical reserves and a large number of innovative patents.
* There are very strict standards for every machine sold all over the world.
* Adopt world famous component application.
* One-stop packaging solution.
* Professional after-sales service system.

02.How do you guarantee that we can receive good quality machines?

* From machined parts to electro-pneumatic parts, from machine assembly to electro-pneumatic adjustment, from packaging to shipping, we have a set of strict quality control standards.
* When the machine is ready, we will send each customer their machine photo and machine test video.
After confirmation by the customer, we can arrange delivery.
* After receiving the machine, if necessary, we can send technicians to the customer's factory to install the machine.
*During the 12-month warranty period, any damaged parts will be delivered to customers for free by express.
After the warranty, damaged parts will be discharged only at the lowest cost price.

03.Do you provide assistance with product operations?

* We have English operation manuals and videos for all products, all icons will be in English or Display in the specified language.

* After receiving the machine, we can provide network remote guidance for machine installation and operation.
