Products Description of High-Speed Capsule Counting and Filling Machine

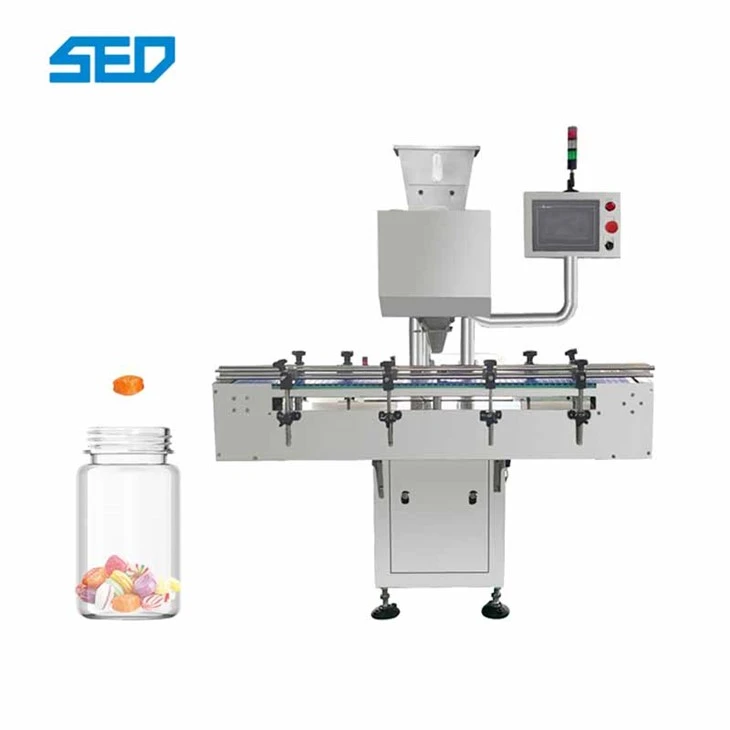

The SED-12S Electronic Capsule Counting Machine by Hangzhou Shengde Machinery represents the next generation of pharmaceutical packaging automation. Designed with advanced high dust-resistance electronic counting technology, this machine ensures 99.9% accuracy even in challenging production environments.
Whether you are packaging fragile soft gels, irregular-shaped tablets, or standard hard capsules, the SED-12S adapts instantly-no mold changes required. Built with GMP-compliant 304 stainless steel, it is the ideal solution for pharmaceutical factories, health supplement producers, and food processing plants seeking efficiency and hygiene.
Products Specification
|
Model Name |
SED-12S |
|
Application |
Hard capsule(000-5#) Soft gelatin capsule Pills Chewing gum, tablet, other solid object (Diameter: 5.5-22mm) |
|
Hopper Volume |
24L |
|
Capacity |
10-50 bottles/min |
|
Filling Quantity |
2-9999pcs/bottle (adjustable) |
|
Bottle Size |
Diameter ≤100mm Height ≤180mm |
|
Conveyor Belt Width |
114mm |
|
Compressed Air |
0.6Mpa 3.5L/min |
|
Voltage |
220V 50HZ Single Phase |
|
Power |
0.75KW |
|
Weight |
340kg |
|
Overall Dimension (L*W*H) |
1360*1530*1700mm |
Working Principle of SED-12S Capsule Counting And Filling Machine
The SED-12S automates the entire bottling process for maximum efficiency:
Bottle Feeding: Empty bottles are transported via the conveyor belt. The bottle blocking device precisely positions each bottle at the filling station.
Material Feeding: Bulk materials are loaded into the 24L hopper. Through the vibration of the corrugated feeding plate, items are aligned and fed into the 12 counting channels.
Electronic Counting: As items pass through the photoelectric sensors, they are counted with high precision. The anti-dust system filters out interference.
Filling & Discharge: Once the preset count is reached, the gate opens, dropping the exact quantity into the bottle. The filled bottle is then released to the next station (capping or labeling).
Key Advantages: Why Choose the SED-12S Capsule Counting Filling Machine ?
1. Advanced Anti-Dust Photoelectric Sensors
Dust from tablets and powders often causes false counts in standard machines. Our proprietary anti-dust sensor technology ensures stable operation even in high-dust conditions, guaranteeing every bottle contains the exact count.
2. Gentle Vibration Blankings (12 Channels)
Equipped with a 3-stage adjustable vibrating platform, the machine distributes materials evenly across 12 channels.
Protects Product: Prevents breakage of fragile soft gels or coated tablets.
Smooth Flow: Ensures consistent feeding speed without jamming.
3. Intelligent Safety & Alarm Systems
The built-in PLC and Touch Screen HMI provide real-time monitoring:
No Bottle, No Fill: Automatically stops counting if no bottle is detected.
Jam Detection: Halts operation immediately if a bottle is tilted or blocked at the output.
Self-Diagnosis: Alerts operators to maintenance needs before failures occur.
4. GMP Compliant Hygiene Design
All parts in contact with materials are constructed from superior 304 Stainless Steel, meeting strict GMP (Good Manufacturing Practice) standards. The smooth surface design allows for quick and thorough cleaning, preventing cross-contamination.
Products Application
The SED-12S Capsule Counting And Filling Machine is widely used in:
Pharmaceutical Industry: Hard capsules, soft gelatin capsules, coated tablets, sugar-coated pills.
Nutraceuticals & Supplements: Vitamin pills, fish oil soft gels, protein tablets.
Confectionery: Chewing gum, candy pellets, chocolate beans.
Hardware & Small Parts: Counting small non-food items like screws or beads (optional configuration).
