Products Description of 16 Channel Vision Counter

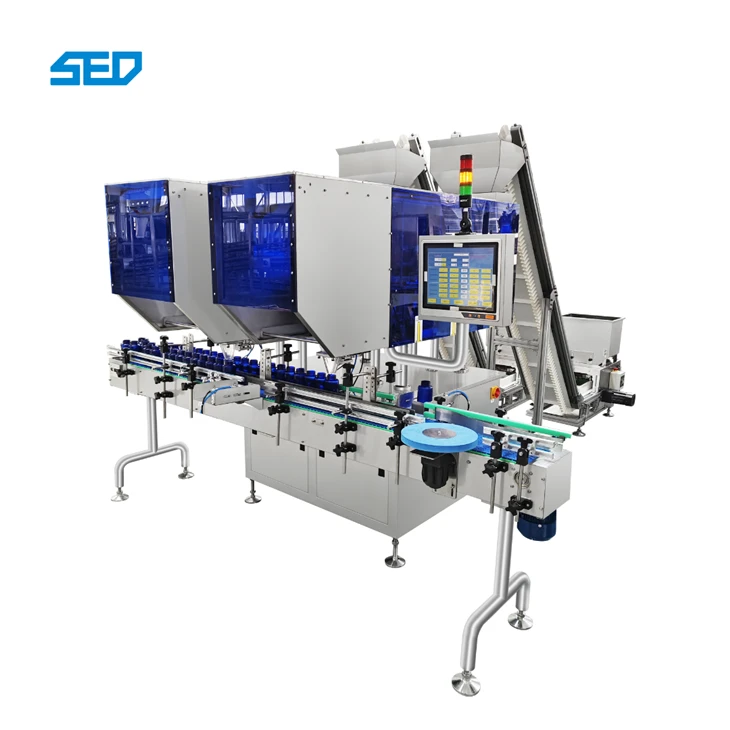

The SED-16SJ is a professional-grade 16 Channel Vision Counter designed for the ultra-precise counting and packaging of pharmaceutical and nutraceutical products. By integrating high-speed CCD industrial camera technology with a robust 16-lane vibration system, this machine overcomes the limitations of traditional photoelectric sensors. It is specifically engineered to handle complex shapes, transparent softgels, and high-dust environments at a capacity of 70 bottles per minute.
GMP;pharmaceutical manufacturing ;food-grade production ;industrial automation;factory equipment.
Products Specification of 16 Channel Vision Counter
|
Model |
SED-16SJ |
|
Production Capacity |
Approx. 70 bottles/min (Variable by product/fill count) |
|
Number of Channels |
16 Linear Channels |
|
Tablet/Capsule Size |
Dia: 1-30mm; Length: 2-45mm; Thickness: 3-30mm |
|
Filling Range |
8 – 9,999 pieces per bottle |
|
Container Compatibility |
Diameter: φ30–φ75mm; Height: 40-200mm |
|
Counting Principle |
CCD Industrial Camera Dynamic Area Scanning |
|
Power Supply |
220V/380V, 50/60Hz |
|
Air Consumption |
0.5 Mpa (5Kg/cm²); 20L/min |
|
Machine Dimensions |
2560 × 1700 × 1840 mm |
Features of 16 Channel Vision Counter
- Advanced CCD Vision System: Unlike traditional infrared counters, the 16 channel vision counter uses high-speed industrial cameras to analyze the surface area of each object, accurately identifying whole pieces, half-tablets, overlapped products, and fragments.
- Ultra-High Accuracy: Achieves a precision rate of ±1 per 10,000, far exceeding international industry standards.
- Superior Dust Resistance: The camera lens is positioned 300mm away from the material path and features automatic light compensation, ensuring reliable operation without interference from powder residue.
- Smart Rejection Protocol: Automatically detects and rejects bottles with incorrect counts (too many/too few), overlapping tablets, or products with more than 20% damage.
- GMP-Compliant Design: All product contact parts are made of AISI 316L stainless steel, while the exterior is finished in AISI 304. The modular design allows for tool-less disassembly and easy cleaning.
Products Application of 16 Channel Vision Counter
The 16-channel Vision Counter can be used in the pharmaceutical, health supplement, and food industries to automatically and accurately count and package various granular materials such as round tablets, irregularly shaped tablets, capsules, transparent softgels, pills, and other solid particles into containers.
