Hangzhou Shengde Machinery Co., Ltd. is one of the most professional manufacturers and suppliers of inline capper in China. Welcome to wholesale customized inline capper at competitive price from our factory. Contact us for cheap products and discount information.
Products Description

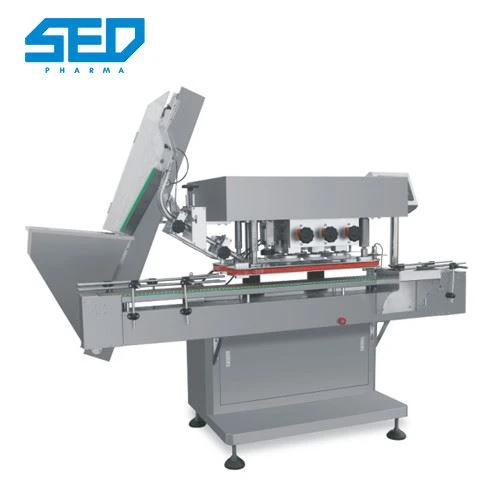

Capping machine are transported from the storage hopper by a lifting device, and then loaded into the sorting area. Capping machine Centrifugal rotation and continuously enter the selection device. Acceptable bottle caps will continue to advance through the special guide rod and enter the descending area to wait for the bottle. The inverted bottle cap adjusts its posture to the upright position and enters the guide rail. Before entering the rails, unqualified covers will be rejected by the inspection equipment.
The bottles are transported by a conveyor belt, and the timing belts on both sides are clamped. After reaching the designated position, the mouth of the bottle will rely on the contact of the running track to remove the cap.
The flexible pressing device can adjust and install the bottle cap in a balanced position, and make the function enter the screw-in area along the bottle to the end. In the tightening area, use 2 pairs of high-speed tightening rubber wheels to tighten the cap.
Two sets of detectors are located at the output end of the production line to ensure that no unqualified bottles enter the next station.
Products Specification
| Capacity | 50～150 BPM |
| Power supply and consumption | 220V/50HZ |
| power | 1.2kw |
| Size | 2200*1700*2100mm |
| Material | SS304 |
| Control System | MCU |
| ComCompressed Air Supply | 0.6 Mpa |
| Weight | 660kg |
About US
Hangzhou Shengde Machinery Co.,Ltd (Abbreviated as SED Pharma) is a pharmaceutical equipment supplier that providespackaging machinery and processingequipment to the pharmaceutical and biotech industry worldwide. Wehave supplied hundreds of pharmaceuticalcompanies all over the world. Our products are used in a variety ofapplications, including liquidinjectables, chemical API, bioengineering and pharmaceuticalpackaging. SED Pharma is dedicated to providingall clients with the highest quality products possible.
With over 20 years of R&D and manufacturing experience inpharmaceutical packaging equipment, we are ableto customize every product according to our clients' uniquerequirements such as special packagingcontainers, packaging materials, and filling methods.
We cooperate closely with well-known scientific researchinstitutions and pharmaceutical institutes toprovide relevant project designs, top-quality equipment andcustomized service to different companies. Ourobjective is to be your one-stop solution provider in the drugmanufacturing process!
our Factory
Workshop
Workshop
Workshop
Workshop
Polishing
Installing
Testing
Assembly
why choose Us
Excellent service: 24 hours online, door-to-door maintenance services available in North America.
Extensive Global Reach: Our company has supplied pharmaceutical and packaging machinery to over 302 pharmaceutical companies across more than 80 countries and regions worldwide.
Expertise in Medicine Processing:In-depth knowledge of medicine processing is integrated with the pharmaceutical equipment knowledge.
Certifications
Exhibitions
SUPPLY SIDE WEST
PHARMEDI VIETNAM
GPMT in Guiyang
CPHI in Shanghai
Follow Our Social Media
FAQ
CONTENT
01.What are your advantages?
* Has rich technical reserves and a large number of innovative patents.
* There are very strict standards for every machine sold all over the world.
* Adopt world famous component application.
* One-stop packaging solution.
* Professional after-sales service system.
02.How do you guarantee that we can receive good quality machines?
* From machined parts to electro-pneumatic parts, from machine assembly to electro-pneumatic adjustment, from packaging to shipping, we have a set of strict quality control standards.
* When the machine is ready, we will send each customer their machine photo and machine test video.
After confirmation by the customer, we can arrange delivery.
* After receiving the machine, if necessary, we can send technicians to the customer's factory to install the machine.
*During the 12-month warranty period, any damaged parts will be delivered to customers for free by express.
After the warranty, damaged parts will be discharged only at the lowest cost price.
03.Do you provide assistance with product operations?
* We have English operation manuals and videos for all products, all icons will be in English or Display in the specified language.
* After receiving the machine, we can provide network remote guidance for machine installation and operation.
