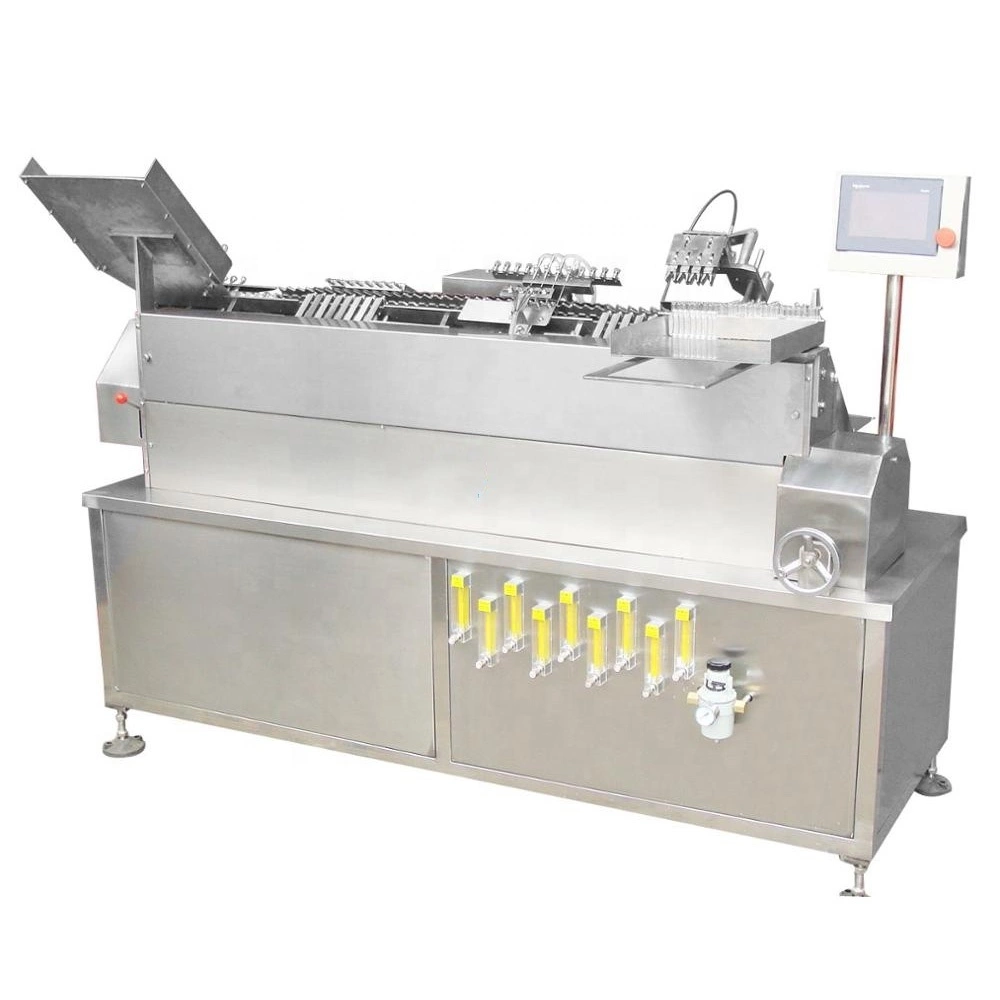

Glass Ampoule Sealing Machine
Product Description of Ampoule Sealing Machine
The glass ampoule filling and sealing machine is the latest development of our company's new disposable ampoule stretch filling machine. It is an upgraded product of ordinary ampoule wire drawing filling machine.
The ordinary ampoule wire drawing filling machine has some functions, such as the use of chains and rectangular transmission ampoules (the conveyor chain is all aluminum alloy, not the original plastic parts, and the service life is greatly improved), which can be stopped without stopping the machine.
Under the circumstances, ampoules are transported, and a preheating opening system is also used to realize the filling of disposable ampoules. The machine adopts imported brand frequency conversion and rectangular transmission ampoules.
The peristaltic pump and PLC touch screen control system can conveniently control and understand the running speed, output and filling volume of the whole machine according to the performance of the product. The main components of the entire control system are imported, which is stable and reliable.
In addition, a new imported linear guide pair is used to replace the original support guide pair, making the gear disc drive more stable, reliable and durable.
There are 12 filling heads in this position, which can meet the requirements of filling compressed air and nitrogen before and after filling (the gas valve is a new type of gas flow meter, which replaces the original needle valve, and the gas adjustment is more stable, convenient and intuitive ); The whole machine runs smoothly in and out of bottles, and the qualified rate of finished products is high.
The frame of the product is made of 304 material, and the 304 hairline board is outsourcing at the same time. It uses groove bending and water cutting technology. The appearance of the whole machine is clear and beautiful. All control switches and inverters are located in the stainless steel control box at the upper right corner of the machine, which is safe and convenient.
Product Parameters of Ampoule Sealing Machine
Size | 1980 *980 *1500 (2200) mm | ||
Specification | 1-5ml | ||
Yield: | 1-2ml: 100-120 branches/min, 5ml:90 branches/min | ||
Dosage of combustion-supporting oxygen | 12kg/h | ||
Fuel and dosage | pipeline gas 5m3/h LPG 2.0kg/h | ||
Products Show of Ampoule Sealing Machine
