Products Description

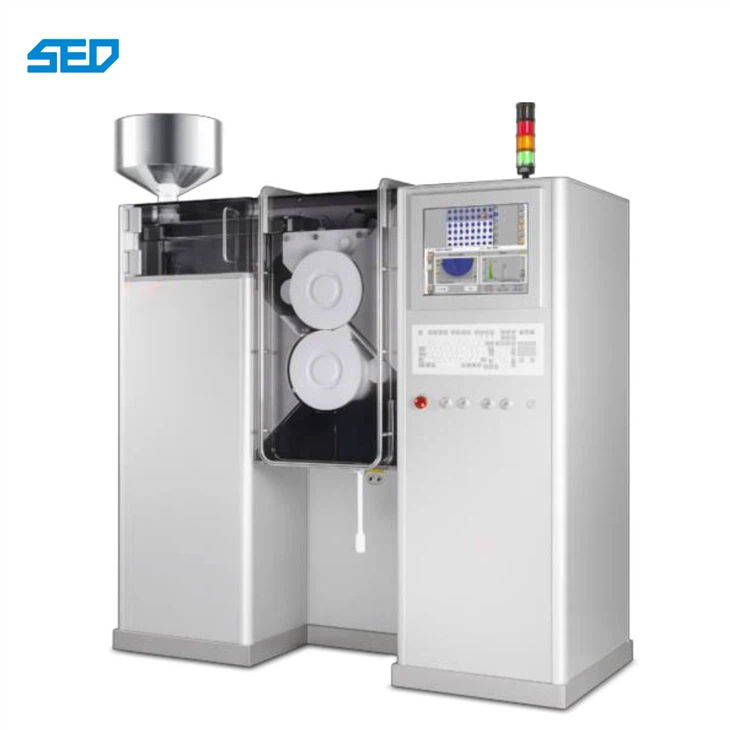

Our SED-8-8300YSJT-F tablet inspection machine vision inspection system is specifically designed for the visual inspection of tablets within the pharmaceutical and healthcare industries. It automatically detects surface and edge defects on every tablet prior to packaging, thereby effectively reducing the risk of customer complaints and product recalls.
How It Works
Tablets are first loaded into the hopper manually or via an optional tablet loader. They are then evenly distributed into 8 inspection channels through a tablet sorting system. Each tablet is held securely on a cavity using vacuum suction to ensure stable positioning during inspection.
The inspection process includes multiple imaging stages:
- Tablets are first captured on one exposed side using a high-resolution camera
- They are then transferred via a servo-driven roller system to another cavity
- Additional cameras inspect the opposite side and edge surfaces
- Defective tablets are automatically identified and rejected into a rejection bin
- Qualified tablets are discharged into a good product collection bin
This multi-stage inspection structure ensures comprehensive defect detection from all angles.
Inspection Scope – Covers Common & Costly Defects

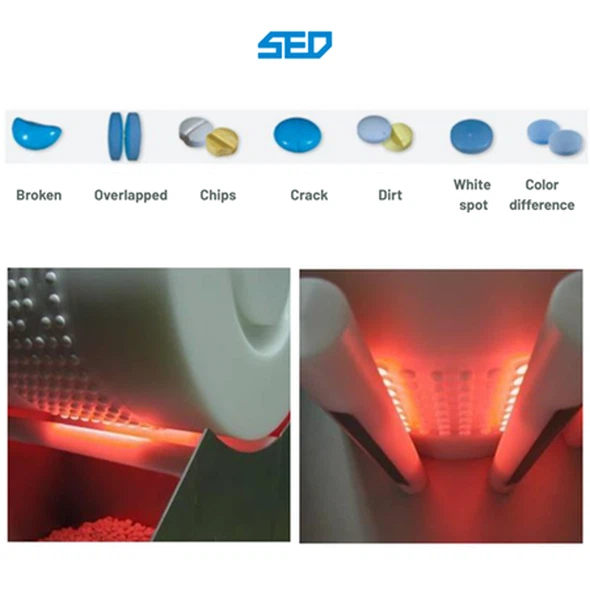

The system is designed to detect common cosmetic defects in tablets, including:
- Broken tablets
- Overlapped tablets
- Chips & cracks
- Surface dirt
- White spots
- Color differences
Why Buyers Choose This tablet vision inspection System
The SED-8-8300YSJT-F is designed to meet the expectations of buyers by focusing on:
1. True 360° Detection with 6 High-Resolution Color Cameras
- 1 camera → top surface
- 1 camera → bottom surface
- 2 cameras → tablet edges (ended surface)
- 2 cameras → sidewalls (sided surface)
All cameras are 2K high-image color cameras, sensitive to subtle defects.
2. GMP & FDA-Ready Construction
- Product contact parts: AISI 316L stainless steel or PE plastic compliant with GMP and FDA regulations.
- Hopper with level sensor and visual window.
- Dust extraction port (pipe connection ready).
3. Gentle, Stable Tablet Transfer
- Vacuum suction holds tablets firmly on the first roller, then transfers to a lower PE roller.
- Driven by a world-renowned servo drive for smooth, low-impact movement – ideal for fragile tablets.
4. Fast & Precise Rejection
- SMC electric-magnetic valve controls rejection.
- Defective tablets are reliably blown into the rejection bin – no cross-contamination.
5. Advanced Camera & Lighting – Works for Various Tablet Sizes & Colors
- Tailor-made high-image color camera: more light-sensitive than standard cameras, detects very tiny defects.
- Adjustable light source (direction and wavelength): compatible with different tablet colors and sizes – no need for multiple light modules.
6. Smart Software – Reduces Operator Workload
- Self-teach function for easy parameter setup.
- Real-time inspection data saving for traceability, root cause analysis, and batch recall.
- Lightness self-monitoring with automatic feedback to PLC (alarm + self-adjustment).
Technical Specifications
|
Model |
SED-8-8300YSJT-F |
|
Applicable product |
Various |
|
Inspection speed |
500,000 tablets per hour for 10mm dia.tablets |
|
Channel quantity |
8 channels |
|
Power supply |
AC220V 50/60Hz |
|
Power consumption |
5KW |
|
Air pressure |
0.45-0.7Mpa |
|
Physical dimension |
Approx 1800*800*1790mm, tailor made is available |
- 6 customized 2K high-resolution color cameras ensure full inspection of various cosmetic defects.
- Real-time interactive control system enables precise single-tablet positioning and rejection.
- Equipped with rejection confirmation function to ensure zero missed rejection (0 missed defects).
- Ergonomic design with fewer components, simplifying changeover, cleaning, and maintenance operations.
- Product contact parts are made of AISI 316L stainless steel and FDA-grade PE plastic, ensuring compliance with GMP and FDA requirements.
- By running a batch of qualified samples, the system can automatically configure inspection parameters, eliminating the need for professional vision engineers.
- Inspection data, rejection counts, and defect types are automatically recorded in real time.
- Supports batch traceability and recall analysis for enhanced quality control and compliance.
Products Application
Our Tablet Inspection Machine Vision Inspection System is specially developed for the pharmaceutical and nutraceutical industries for tablet cosmetic visual inspection. It is mainly applied in the following production stages:
Post-Tablet Compression Stage:
In-line inspection after tablet pressing, replacing manual visual inspection and helping reduce missed defects caused by operator fatigue.
Pre-Packaging Stage:
Installed before bottle filling or blister packaging to remove defective tablets such as broken pieces, cracks, contamination, and color variations.
Multi-Product Changeover Production:
Suitable for tablets of different sizes, colors, and shapes (round or irregular tablets). The self-learning function enables fast changeover and optimized setup for different production runs.
FAQ – Tablet Inspection System SED-8-8300YSJT-F
Q: What is the main purpose of this tablet inspection machine?
A: The system is designed for automatic cosmetic inspection of pharmaceutical tablets, detecting surface and edge defects such as cracks, chips, color variation, dirt, and broken tablets.
Q: What types of defects can the system detect?
A: It can detect common cosmetic issues including:
- Broken tablets
- Chips and edge damage
- Cracks
- Overlapping tablets
- Dirt or contamination
- White spots
- Color differences
Q: How does the inspection system work?
A: Tablets are fed into the hopper and distributed into 8 channels. Vacuum cavities hold each tablet in position while multiple high-resolution cameras inspect all sides. Defective tablets are automatically rejected, while qualified tablets are collected separately.
Q: How many cameras are used in this system?
A: The system uses 6 high-resolution 2K color cameras, arranged to inspect all surfaces of the tablet for 360-degree defect detection.
Q: Does the machine comply with pharmaceutical industry standards?
A: Yes. Product contact parts are made of AISI 316L stainless steel or GMP/FDA-compliant materials, suitable for pharmaceutical production environments.
Q: Can the system store inspection data?
A: Yes. The software can record inspection data in real time, allowing traceability, quality analysis, and production review.
Q: Is dust control available?
A: Yes. The system has a reserved connection for an optional dust extraction unit, helping maintain a clean inspection environment.
Q: Can the machine be customized?
A: Yes. Dimensions and certain configurations can be customized according to customer production requirements.
