Encapsulation Machine For Sale

Automatic soft gelatin capsules making filling machines Product description softgel encapsulation machine can quantifiationally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of softgel encapsulation with different size , shape and color . It is widely used...

Send Inquiry

Chat Now

Description

Hangzhou Shengde Machinery Co., Ltd. is one of the most professional manufacturers and suppliers of encapsulation machine for sale in China. Welcome to wholesale customized encapsulation machine for sale at competitive price from our factory. Contact us for cheap products and discount information.

Encapsulation Machine Pharmaceutical

Detailed Parameters of Encapsulation Machine

Model	RJWJ115	RJWJ2-200	RJWJ2-300
Rotary speed of die roll	0-4rpm	0-5rpm	0-5rpm
Capacity	13500pills/h for 12# Oval at 3rpm	45000 pills/h for 10# Oval	70,200pills/h for 8# Oval at medium production speed
Supplying volume for flow single-pillar	0-2ml
Power of main machine	4kw	7.5 kw	16.5kw
Overall size	1500X770X1600mm	2100x1100x1800 mm	2200×1275×1900 mm
Weight	650kg	1580kg	1840kg

Product Description of Encapsulation Machine

The soft capsule encapsulating machine can quantitatively mix oil, suspension and paste substances into the capsule to form various soft capsule encapsulation of various sizes, shapes and colors. It is

widely used in medicine, health products, cosmetics, paintball and other fields.

Product Show of Encapsulation Machine

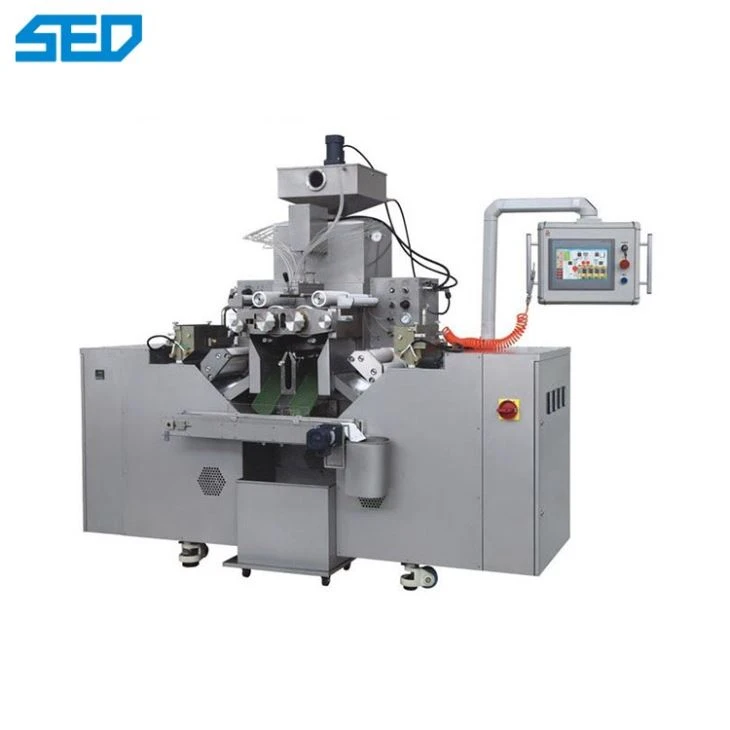

soft gelatin capsules making filling machines

main features of Encapsulation Machine

Strong production capacity, it can produce 370 million granules (Take the 200C for example, No. 8 oval shape, 3rpm, 24hours/day, 300 days/year).

2. Medicine injecting part adopts advanced linearity driving system, and ensure that the precision of charging and filling is lessthan 2%.

3. Advanced water cooling system, can avoid to the pollution by air.

4. Capsule package rate is up to 98%.

5. The gelatine ribbon is lubricated by fine oil supply technology in order to lower the consumption of lubrication oil. If theribbon is lubricated by vegetable oil, so the capsules produced is free of wash.

6. High quality capsule deferent equipment adopts food conveyer belt authorized by American FDA, without poison and adhibition and easy to clean.

7. Optimized designed mould is made of high quality aviation alloy material by high precision numerical control process to ensure the mould's service life.

8. Advanced process and assembly technics make the complete appliance quality stabilization, high working rate, and good shape pill.

9. Adopt automatic system project of supplying capsule and material to reduce workers' labor intensity and improve the working environment, which accords with the requirement of GMP.

10. The liquid level in the gelatin box is fixed automatically in the constant position, and the centigrade mater display the thickness of rubber, which is easy and accurate in adjustment.

11. The power of main motor is 1.1KW, which can avoid the phenomenon of insufficient driving power when the content is rather thick. (Take 200 model for example). Adopt the nonpoisonous materials to human body or now dropping matters into medicine liquid in this machine and medicine liquid, and the touching parts.

Application of Encapsulation Machine
