SED-200-9Y-B Rotary Tablet Press

SED-200-9Y-B Rotary Tablet Press

The SED-200-9Y-B is a nine-station, single-compression rotary tablet press for compatible granular materials.
Send Inquiry
Chat Now
Description

Hangzhou Shengde Machinery Co., Ltd. is one of the most professional manufacturers and suppliers of SED-200-9Y-B Rotary Tablet Press in China. Welcome to wholesale customized SED-200-9Y-B Rotary Tablet Press at competitive price from our factory. Contact us for cheap products and discount information.



Products Description

The SED-200-9Y-B is a single-compression rotary tablet press with nine die stations. It compresses compatible granular materials into tablets with the selected tooling.

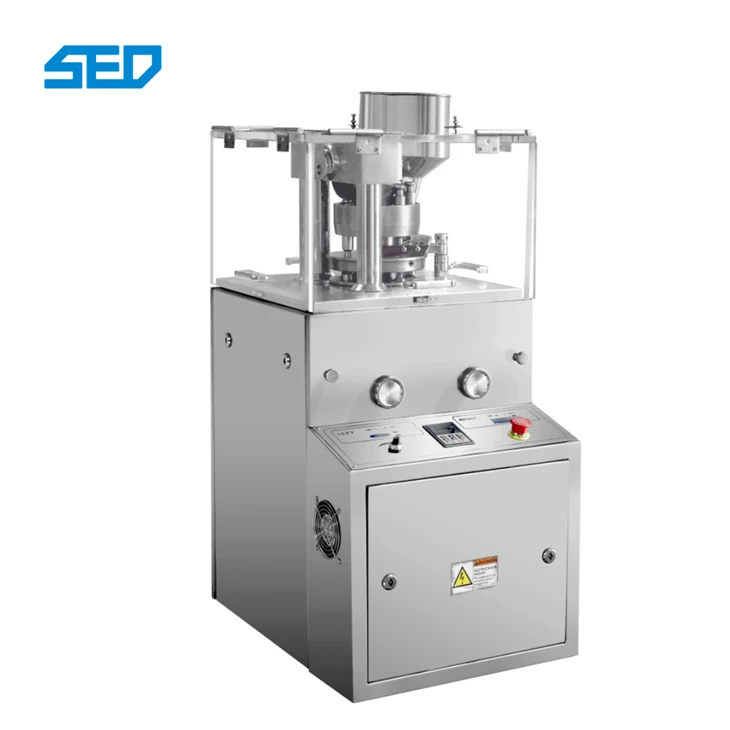

SED-200-9Y-B rotary tablet press

Products Specification

Model

SED-200-9Y-B

Number of Dies

9

Listed output range

10,000–16,200 tablets/hour

Max Tablet Diameter

20 mm

Max Fill Depth

15 mm

Max Tablet Thickness

6 mm

Max Pressure

60 kN

Turret Speed Range

20–30 rpm

Motor Power

2.2 kW

Overall Dimensions

480 × 630 × 1100 mm

Net Weight

360 kg

Features

The machine has a guarded pressing area and adjustable turret speed. The documented output range applies to the nine-station model.
