Detachable 8-Channel Tablet and Capsule Counting Machine

Detachable 8-Channel Tablet and Capsule Counting Machine

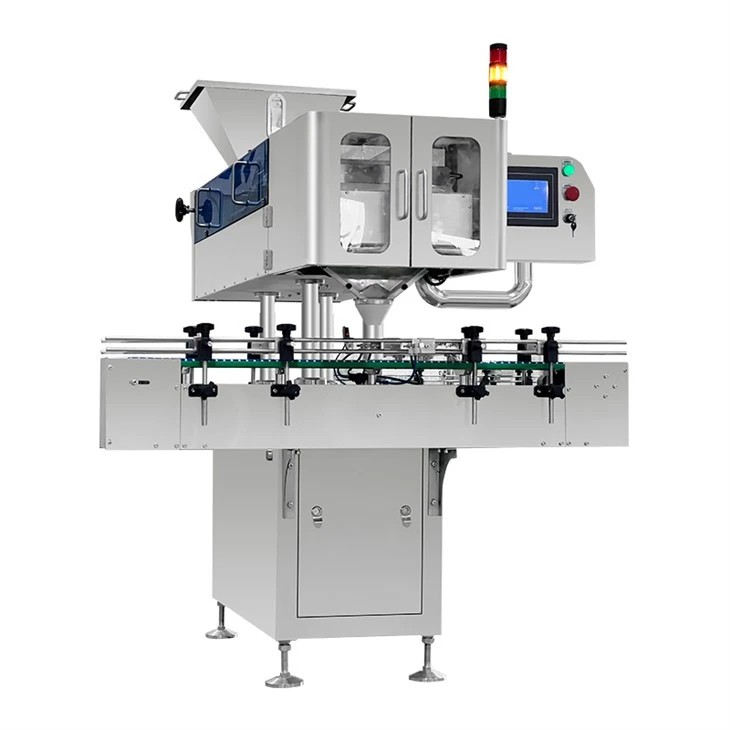

The SED-8SP detachable 8-channel counter uses vibratory feeding and photoelectric sensors to count tablets, capsules, softgels and pills into bottles. Its reference production speed is 10–45 bottles/min.
Send Inquiry
Chat Now
Description

Hangzhou Shengde Machinery Co., Ltd. is one of the most professional manufacturers and suppliers of Detachable 8-Channel Tablet and Capsule Counting Machine in China. Welcome to wholesale customized Detachable 8-Channel Tablet and Capsule Counting Machine at competitive price from our factory. Contact us for cheap products and discount information.



Products Description

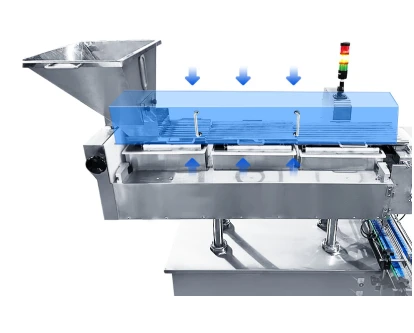

The detachable configuration of the SED-8SP uses eight vibratory channels and photoelectric sensors to count tablets, capsules, softgels and pills into bottles. The feed separates individual pieces before counting, and the conveyor carries bottles to and from the filling station.

Products Specification

Model SED-8SP
Counting channels 8
Reference production speed 10–45 bottles/min
Hopper capacity Approx. 16 L
Bottle diameter 100 mm
Bottle height Up to 180 mm
Compressed air 0.6 MPa, 5 L/min

Features

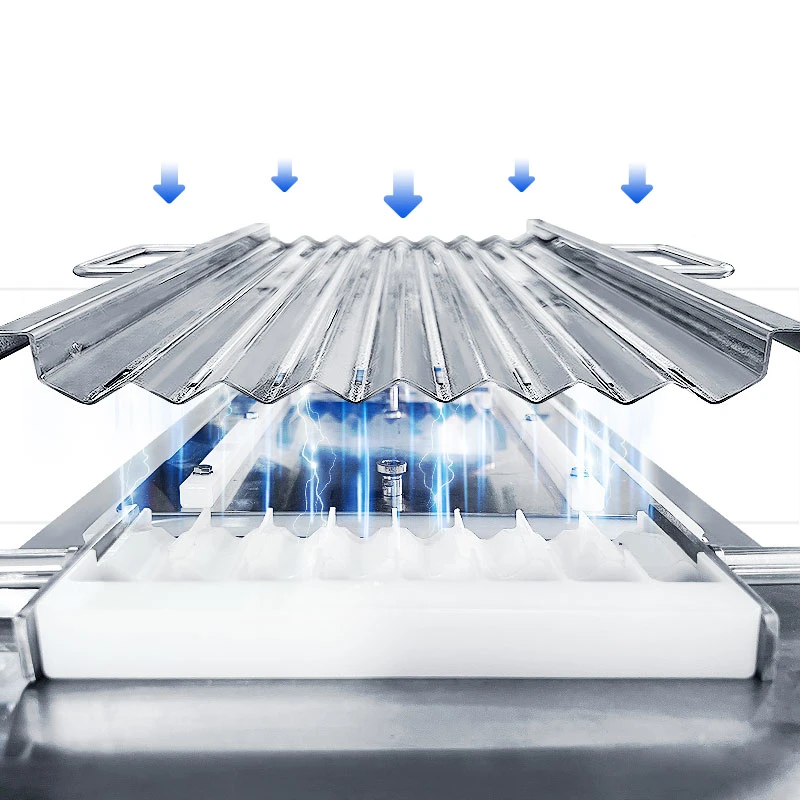

The operator sets the target count for each bottle. The vibratory feed plates are detachable for cleaning. Product size, bottle format and the required count determine the production setup.

Products Application

Suitable for counting and bottling solid-dose products on pharmaceutical and supplement packaging lines. Confirm product and bottle fit for the intended configuration.
