Products Description
The SED-GS-S automatically separates sachets from a continuous roll of desiccant packaging and inserts them into bottles. It brings together mechanical feeding, electrical control and pneumatic operation. Bottles travel through the inserting position and then continue towards the next packaging operation.
Servo feeding and sachet insertion
The desiccant strip is threaded from its supply roll into the servo feeding mechanism. A photoelectric sensor detects the registration marks on the strip. The control system uses this signal to determine the feeding position, allowing the cutter to separate the sachet at the required point. The cut sachet is then inserted into the bottle positioned beneath the mechanism.
After insertion, the conveyor transfers the bottle to the following process and brings the next bottle into position. This arrangement is intended for continuous bottled packaging using roll-fed desiccant sachets. It handles prepacked desiccant bags; it does not form the sachet or fill loose desiccant powder into the bottle.
Controls and line coordination
A PLC coordinates the operating sequence. The operator interface provides access to machine settings, and adjusted parameters can be saved for operation. The electrical system uses variable-frequency speed control together with servo positioning to coordinate the desiccant feed and inserting process.
Photoelectric detection at the inlet checks whether bottles are available for insertion. Detection at the outlet monitors whether bottles are blocked downstream. The machine stops when no incoming bottle is available or when an outlet blockage is detected. When the conveying conditions return to normal, operation can resume automatically. These functions support coordinated operation with the surrounding packaging line.
The equipment also monitors for missing desiccant insertion and blockage in the desiccant path. A detected missing-insertion or blockage condition causes an alarm and stops the machine. The operator can then inspect the cause before continuing production.
Bottle and sachet selection
The bottle and roll-fed sachet must fall within the specified format limits. Sachet length is selected for the bottle and intended loading requirement. Production rate depends on the package being handled, so the stated range is a reference for the selected setup. Bottle capacity, desiccant roll dimensions and sachet limits are set out in the specification table.

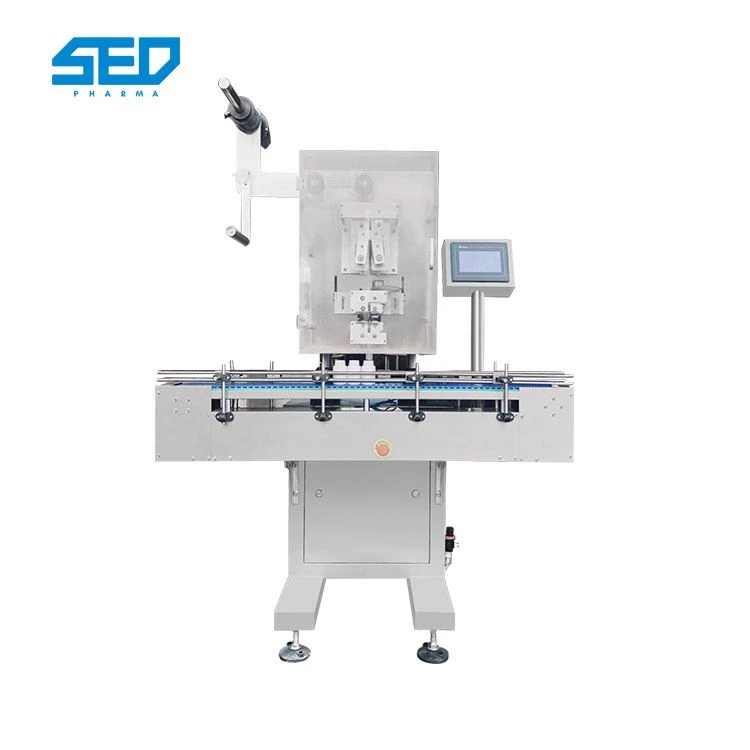

The reference photograph shows the roll holder, feeding and cutting assembly, conveyor, operator panel and protective enclosure. Confirm the enclosure arrangement as part of the selected machine configuration. The equipment has a straightforward arrangement for adjustment, commissioning and maintenance.
Products Specification
| Parameter | Specification |
|---|---|
| Model | SED-GS-S |
| Production capacity | 60–160 bottles/min, dependent on the package |
| Applicable bottle capacity | 15–500 mL |
| Maximum desiccant roll outer diameter | 300 mm |
| Desiccant roll core diameter | 75 mm |
| Desiccant roll thickness | 90–140 mm |
| Maximum individual sachet width | 35 mm |
| Individual sachet length | Selected for the bottle and loading requirement |
| Electrical supply | AC 220 V, 50/60 Hz |
| Compressed air pressure | 0.4 MPa |
| Air consumption | 0.3 m³/h |
| Overall dimensions (L × W × H) | 1600 × 750 × 1800 mm |
| Net weight | 300 kg |
| Machine body material | 304 stainless steel |
Features
- Servo feeding positions the continuous desiccant strip for cutting.
- Photoelectric registration-mark detection coordinates sachet separation.
- PLC control with an operator interface and saved operating settings.
- Inlet bottle detection and outlet blockage monitoring support line coordination.
- Missing-insertion and desiccant-path blockage detection trigger an alarm and stop.
- Conveyor transfer carries inserted bottles towards the next packaging process.
