Flat Bottom Pouch Fill-Seal Machine

Flat Bottom Pouch Fill-Seal Machine

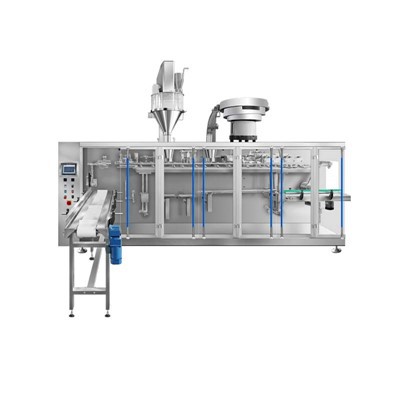

SED-280GD-B(带投勺) is a horizontal premade flat-bottom pouch fill-seal system for powders with scoop insertion. Its configuration includes a vibratory scoop feeder bowl and a separate auger filling system. The main machine supports pouches from 120×150 mm to 280×400 mm, a maximum filling capacity of 4 kg and packaging capacity of up to 30 pouches per minute.
Send Inquiry
Chat Now
Description

Hangzhou Shengde Machinery Co., Ltd. is one of the most professional manufacturers and suppliers of flat bottom pouch fill-seal machine in China. Welcome to wholesale customized flat bottom pouch fill-seal machine at competitive price from our factory. Contact us for cheap products and discount information.





Products Description

The SED-280GD-B(带投勺) is the scoop-insertion configuration of a horizontal premade flat-bottom pouch fill-seal system. The described application is protein powder packed with a scoop. The configuration includes a vibratory scoop feeder bowl with an adjustable guard rail, a bag shaker at the filling station and an integrated exit conveyor.

Powder dosing uses a separate auger filler. The project equipment list also includes a vacuum powder feeder and an industrial dust collector. The specification table below covers the main pouch machine; its power and dimensions are not the combined ratings or footprint of all auxiliary equipment.

Pouch-opening inspection prevents filling and sealing when a bag fails to open. The main machine has a maximum filling capacity of 4 kg and a packaging capacity of up to 30 pouches per minute.

Get Your Custom Solution Quoteor



product-1-1

Products Specification



Items

Pre-made Pouch-Fill-Seal Machinery

SED-280GD-B

Packaging Parameters

Min.(W*H/L)

120×150mm

Max.(W*H/L)

280×400mm

Filling Capacity(Max.)

4KGS

Packaging Capacity(p/min)

≤30

Equipment Specifications

Machine Dimension(L*W*H)

2900mm×1100mm×1400mm

Gross weight

1500kg

Ambient temperature

-10℃-+55℃

Relative humidity

(non-condensing state)

85% below

voltage

AC380V,50Hz

Air pressure

0.6Mpa

Air consumption

300L/min

Main power

5.0Kw



Products Features



Powder and scoop configuration: the formal model includes a vibratory feeder bowl for scoop insertion.

Premade flat-bottom pouches: use the main-machine range of 120×150 mm to 280×400 mm, as listed in the table above.

  • Bag-opening inspection inhibits filling and sealing after a failed opening.
  • A bag shaker levels product at the filling station.
  • Heat sealing is followed by cooling and shaping.
  • The exit conveyor transfers finished pouches.



Operation mode

Premade Pouch Infeed

An adjustable infeed roller supports flip-out pouch picking, replenishment without stopping and a bag-shortage alarm.

Magazine load depends on pouch conditions. The main-machine pouch range in the specification table governs this configuration; generic infeed-module format claims do not expand that range.

product-234-189product-184-195

Pouch Opening System

Adhesive suction is carried out on both sides of the bag opening through the vacuum suction cup, and the mechanical action of the

cam swing rod after suction is carried out. Both sides are pulled open at the same time,

The bag clamping grip is carried out synchronously to the middle squeeze, so as to achieve the bag opening effect.

Different bag materials require different suction cups.

product-156-208

Zipper Opening Device

A zipper-opening device and grippers assist the opening of zipper pouches.

product-229-342

Negative Pressure Facilities

An independent vacuum system supplies negative pressure for pouch handling.

This does not replace the main machine's compressed-air requirement shown in the specification table.



product-232-208

Open Bag Inspection

Metal-sheet detection checks for bag material on both sides of the opening.

If opening fails, the pouch is not filled or sealed.

Filling Station

It can be filled with five-spice powder, chili powder, cumin powder, flavoring, flour, pepper, matcha powder, wine curd powder, veterinary powder, milk powder, medicinal powder, etc.

Dosing uses the separate auger filler with tooling selected for the product and filling range. The main pouch system maximum remains 4 kg.

product-224-285

Pouch Spreading, Flattening and Shaping

The opened pouch is spread, flattened and shaped before sealing.

product-333-288

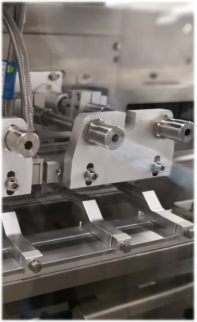

Heat Sealing

The heat-sealing station uses a cam opening and closing mechanism.

Sealing temperature, width and strength can be adjusted, and sealing patterns can be specified for the application.

product-197-322

Cooling and Shaping

A cooling and shaping stage follows heat sealing to cool and form the pouch opening.

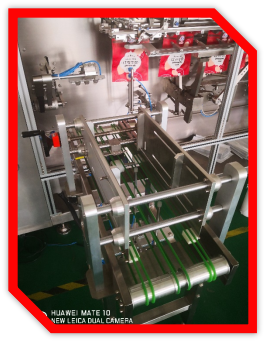

Finished Product Conveying

1.Customizable length, height from the ground, belt width

2.Belt type optional PVC, PU

3.PVC and PU are listed belt options; the belt selection is specified for the application.

4.Face color can be customized, blue, green, white are available





product-269-291

Electrical Control Cabinet

The panel is equipped with emergency stop, start, jog, buzzer, power indicator, temperature control panel

HMI Operation;

Among them, the man-machine interface adopts true color touch screen

Can write data and edit content

Can display fault code

Can display production information



product-294-147

Transmission System

A parallel indexing cam mechanism controls the station actions. Each station action can be adjusted independently.

Applications



SED-280GD-B(带投勺) is described for protein powder packed with a scoop. Other powder applications require a suitable auger tooling and pouch configuration; the main-machine limits remain those in the specification table.
