Pouch Filler for Multi-Format Powders & Granules | High-Speed Premade Bag Packer

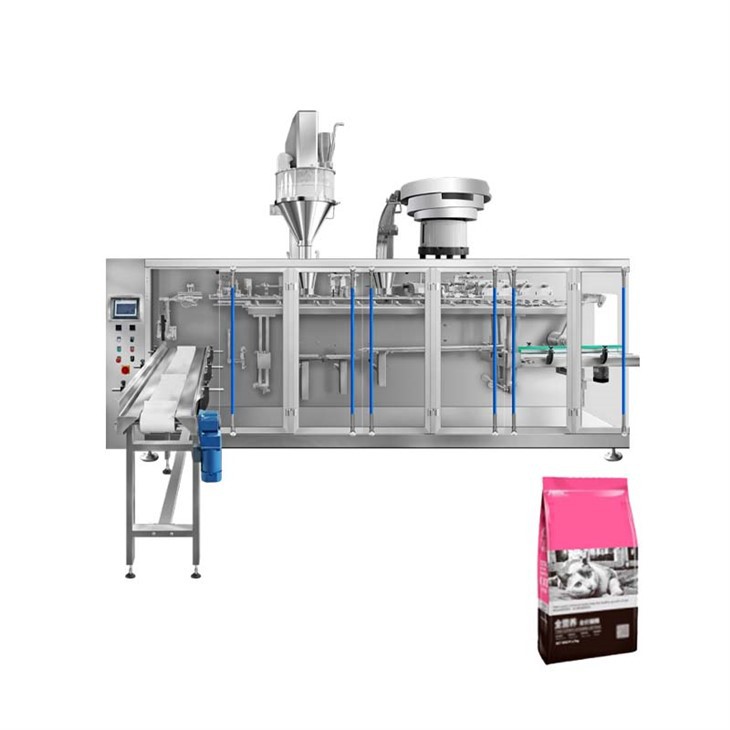

SED-240GD-B High-Speed Pouch Fill-Seal Machine is an industry-leading solution designed for large-scale production facilities. Achieving speeds of up to 60 bags per minute, this machine seamlessly automates the entire process: from high-capacity bag feeding to precision sealing and date coding.

Built with a 1450kg heavy-duty frame, it offers unparalleled stability and longevity, making it the ideal choice for demanding environments in the food, pharmaceutical, and chemical industries.

Get Your Custom Solution Quoteor

Products Specification

Items	Pre-made Pouch-Fill-Seal Machinery	SED-240GD-B
Packaging Parameters	Min.(W*H/L)	110×140mm
	Max.(W*H/L)	240×350mm
	Filling Capacity(Max.)	2000ml
	Packaging Capacity(p/min)	≤60
Equipment Specifications	Machine Dimension(LWH)	3100mm×110mm×1400mm
	Gross weight	1450kg
	Ambient temperature	-10℃-＋55℃
	Relative humidity (non-condensing state)	85% below
	voltage	AC380V,50Hz
	Air pressure	0.6Mpa
	Air consumption	350L/min
	Main power	5.5Kw

Products Features

Advanced Bag Opening System: Utilizing a synchronized cam swing rod and dual vacuum suction cups, the machine ensures a 100% successful opening rate for various bag materials.
Patented Zipper Technology: Features a specialized gripper design to handle resealable zipper pouches with unmatched reliability.
Intelligent Inspection & Recovery: Equipped with metal sheet detection. If a bag fails to open, the machine automatically skips the filling and sealing steps, allowing you to recycle packaging materials and eliminate product waste.
Precision Sealing & Shaping: A dedicated station flattens and shapes the bag mouth before sealing, rejecting common defects like pleats, air bubbles, or leakage.
Hygienic & Low Maintenance: The internal mechanism uses composite steel sleeves without ball bearings, specifically designed for powder packaging to prevent contamination and ease cleaning.

Products details

The pre-made pouch feeding way

Adjustable within a certain range, with high versatility

500~1000 bags can be loaded at one time;Flip-out pouch-picking;Non-stop bag load ,bag shortage alarm ;Applicable for: 4-side seal, 3-side seal, stand up pouch,Shaped bags , Zipper & Spout bags;Advantages: A broader range of applications

Pouch Opening System

Adhesive suction is carried out on both sides of the bag opening through the vacuum suction cup, and the mechanical action of the

cam swing rod after suction is carried out. Both sides are pulled open at the same time,

The bag clamping grip is carried out synchronously to the middle squeeze, so as to achieve the bag opening effect.

Different bag materials require different suction cups.

Zipper opening Device

The patented zipper opening device and gripper design

ensures optimal performance.

Negative Pressure Facilities

Vacuum pump, independent vacuum system. Can stably maintain negative pressure supply;

Recommended for those that cannot provide a stable compressed air pressure

product-232-208

Open bag inspection

1. Using metal sheets to detect the bag materials on both sides of the bag opening.

2. The absence of material on either side means that the bag has failed to open.

3. For the failed, the bag is not filled and not Sealing;packaging materials can be recycled.

4. Suitable for products with large elasticity of the package material and dusty packaging environment.

Filling Station

It can be filled with five-spice powder, chili powder, cumin powder, flavoring, flour, pepper, matcha powder, wine curd powder, veterinary powder, milk powder, medicinal powder, etc.

Good precision, Good sealing, Good hygiene to engage

Bag spreading, flattening and shaping station

1.The opened bag can be flattened and shaped, making the seal more beautiful

2.Abdominal installation, all using composite steel sleeve, no ball bearings, Powder products can be packed carefree, easy to disassemble and maintain.

3.Reject Pleated Seals

4.Reject White Leak Seal

5.Reject air bubble seal

6.Reject Air Leakage Seal

Sealing\heat sealing station

1.Reject Pleated Seals

2.Reject White Leak Seal

3.Reject air bubble seal

4.Reject Air Leakage Seal

5.Reject Air pockets

6.Set different temperature values

7.Customized sealing patterns

8.Cleaned without dismantling

9.Adjustable sealing width

10.Adjustable sealing strength

11.Cam opening and closing and movement structure is strong

12.Better matching in cam-controlled speed regulation

Cool sealing\timely shaping station

1.Cam opening and closing and movement structure is strong

2.Quickly cools the heated bag opening in the previous station

3.Good sealing stability, timely shaping prevents the mouth of the bag is propped up by the material in the bag ,It also prevents the bag from creasing caused by high sealing temperature after the bag leaves the platform

4.Better matching in servomotor-controlled speed regulation

Characterized print date

5.One bag, one code clearly visible, no supplies, no pollution

Finished Product Conveying

1.Customizable length, height from the ground, belt width

2.Belt type optional PVC, PU

3.PU is recommended for food grade

4.Face color can be customized, blue, green, white are available

Electrical Control Cabinet

All Brand electrical components

The panel is equipped with emergency stop, start, jog, buzzer, power indicator, temperature control panel

HMI Operation;

Among them, the man-machine interface adopts true color touch screen

Can write data and edit content

Can display fault code

Can display production information

Transmission System

Parallel Indexing Cam Profile to reduce machine noise and jerk to assure long machine life span

Applications

This machine is highly versatile and suitable for various pre-made bag types, including:

4-Side Seal Bags (Flat Bottom/Quad Seal)
3-Side Seal Bags
Stand-Up Pouches (Doypack)
Shaped Bags
Zipper & Spout Bags

Ideal for Packaging:

Spices: Five-spice powder, chili powder, cumin, pepper.
Food Ingredients: Flour, matcha powder, flavoring.
Nutritional Products: Milk powder, wine curd powder.
Pharmaceuticals: Medicinal powder, veterinary powder.

powder pouch packing machine
