High-Speed 60 BPM Snacks Packaging Solution: Precision Pouch Filling for Chips, Nuts, and Dried Fruits.

High-Speed Snacks Bag Packaging Machine is a premier rotary solution engineered for the food industry. Capable of speeds up to 60 bags per minute, this machine is the ideal solution for packaging a wide variety of snacks, from chips and nuts to dried fruits and candies. It features an advanced bag opening mechanism that ensures consistent, damage-free handling of pre-made pouches.

Get Your Custom Solution Quoteor

Products Specification

Items	Pre-made Pouch-Fill-Seal Machinery	SED-210GD-B
Packaging Parameters	Min.(W*H/L)	90×130mm
	Max.(W*H/L)	210×330mm
	Filling Capacity(Max.)	1500ml
	Packaging Capacity(p/min)	≤60
Equipment Specifications	Machine Dimension(LWH)	2550mm×1100mm×1400mm
	Gross weight	1200kg
	Ambient temperature	-10℃-＋55℃
	Relative humidity (non-condensing state)	85% below
	voltage	AC380V,50Hz
	Air pressure	0.6Mpa
	Air consumption	160L/min
	Main power	4.5Kw

Products Features

Precision Vacuum Bag Opening: The machine employs dedicated vacuum suction cups to perform an adhesive suction process on both sides of the bag opening. This ensures a reliable seal and secure hold before the opening process begins.

Advanced Cam Swing Rod Mechanism: Once suction is achieved, a high-precision cam swing rod transforms rotational motion into a steady swinging motion. This mechanism pulls both sides of the bag apart simultaneously, preventing uneven pressure, tearing, or warping.

Synchronized Clamping Grips: Following the pulling action, bag clamping grips move synchronously toward the center. This controlled pressure fully expands the bag opening, creating ample space for smooth material filling.

Material-Specific Suction Cups: The equipment is adaptable to various bag materials through specialized suction cups:

Soft Grip Cups: Designed for thin, light plastic bags to prevent surface damage.
High-Power Cups: Engineered for thick, stiff composite bags to ensure a solid hold.
Porous Flow Cups: Featuring special airflow paths for effective suction on porous materials like paper bags.

Operation mode

The pre-made pouch feeding way

Adjustable within a certain range, with high versatility

500~1000 bags can be loaded at one time;Flip-out pouch-picking;Non-stop bag load ,bag shortage alarm ;Applicable for: 4-side seal, 3-side seal, stand up pouch,Shaped bags , Zipper & Spout bags;Advantages: A broader range of applications

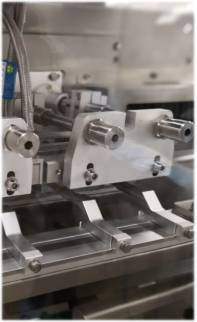

Pouch Opening System

Adhesive suction is carried out on both sides of the bag opening through the vacuum suction cup, and the mechanical action of the

cam swing rod after suction is carried out. Both sides are pulled open at the same time,

The bag clamping grip is carried out synchronously to the middle squeeze, so as to achieve the bag opening effect.

Different bag materials require different suction cups.

Zipper opening Device

The patented zipper opening device and gripper design

ensures optimal performance.

Open bag inspection

1. Using metal sheets to detect the bag materials on both sides of the bag opening.

2. The absence of material on either side means that the bag has failed to open.

3. For the failed, the bag is not filled and not Sealing;packaging materials can be recycled.

4. Suitable for products with large elasticity of the package material and dusty packaging environment.

product-120-152

Bag spreading, flattening and shaping station

1.The opened bag can be flattened and shaped, making the seal more beautiful;

2.Abdominal installation, all using composite steel sleeve, no ball bearings, Powder products can be packed carefree, easy to disassemble and maintain.

3.Reject Pleated Seals

4.Reject White Leak Seal

5.Reject air bubble seal

6.Reject Air Leakage Seal

Sealing\heat sealing station

1.Reject Pleated Seals

2.Reject White Leak Seal

3.Reject air bubble seal

4.Reject Air Leakage Seal

5.Reject Air pockets

6.Set different temperature values

7.Customized sealing patterns

8.Cleaned without dismantling

9.Adjustable sealing width

10.Adjustable sealing strength

11.Cam opening and closing and movement structure is strong

12.Better matching in cam-controlled speed regulation

Cool sealing\timely shaping station

1.Cam opening and closing and movement structure is strong

2.Quickly cools the heated bag opening in the previous station

3.Good sealing stability, timely shaping prevents the mouth of the bag is propped up by the material in the bag ,It also prevents the bag from creasing caused by high sealing temperature after the bag leaves the platform

4.Better matching in servomotor-controlled speed regulation

5.Characterized print date

One bag, one code clearly visible, no supplies, no pollution

Finished Product Conveying

1.Customizable length, height from the ground, belt width

2.Belt type optional PVC, PU

3.PU is recommended for food grade

4.Face color can be customized, blue, green, white are available

Electrical Control Cabinet

All Brand electrical components

The panel is equipped with emergency stop, start, jog, buzzer, power indicator, temperature control panel

HMI Operation;

Among them, the man-machine interface adopts true color touch screen

Can write data and edit content

Can display fault code

Can display production information

Transmission System:

Parallel Indexing Cam Profile to reduce machine noise and jerk to assure long machine life span

Applications

This machine is designed to handle a diverse spectrum of snack products and packaging types:

Snack Foods: Potato chips, puffed snacks, nuts (almonds, peanuts), seeds, and dried fruits.
Confectionery: Candies, chocolates, and jellies.

Packaging Types:

Stand-up pouches (Doypack)
Zipper bags
Four-side seal bags
Paper bags (with appropriate suction cups)
Shaped bags
