Products Description

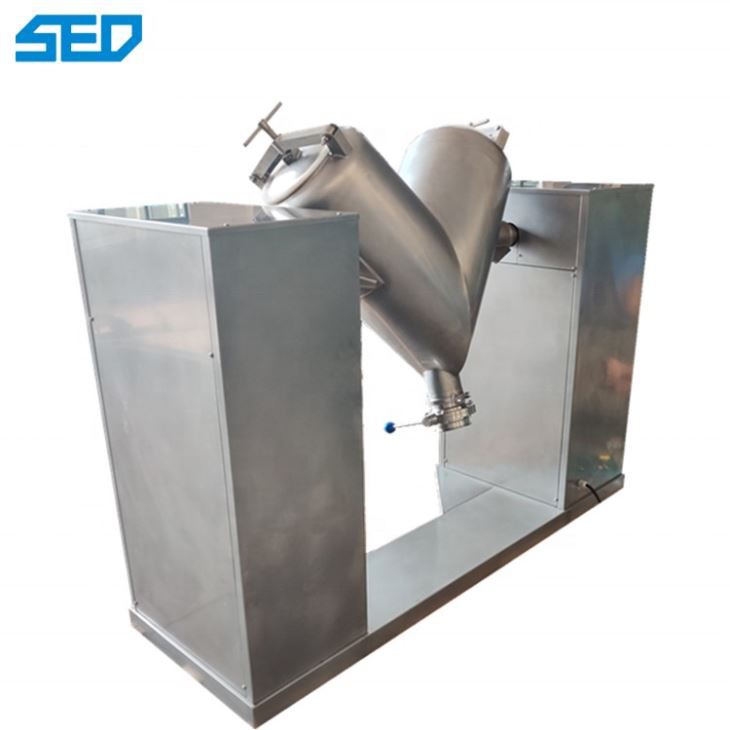

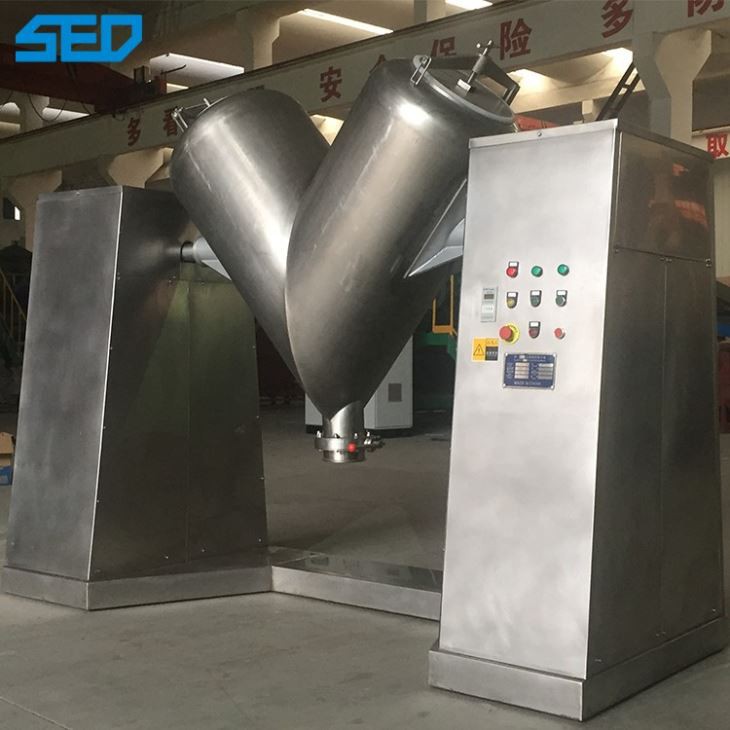

The SED-1000VH-E is a two-arm V-type mixer for dry powders and granules. As its vessel rotates, the batch moves through the two arms and recombines, providing a tumbling action without an internal agitator in the documented base configuration. It is intended for materials whose density and flow behaviour suit the stated working volume and loading limits.
Capacity and batch planning
The full vessel volume is 1000 L, and the documented working volume is 400 L, corresponding to a 40% loading factor. The source lists 500 kg as maximum loading and 280 kg as optimum loading. These mass figures are reference values; actual batch mass depends on the bulk density and mixing behaviour of the material. Confirm a suitable fill level and mixing time through process trials and sampling.
Vessel and material path
The source describes a stainless-steel mixing vessel with a smooth interior. It lists a 750 mm cylinder diameter, 400 mm feed opening and 150 mm outlet opening. The manual describes a stainless-steel butterfly discharge valve. The exact stainless-steel grade is not stated in the checked model documents, so material certification should be confirmed for the final supplied unit if required by the process.
Drive, operation and installation
A 4 kW motor drives the vessel at the documented 10 r/min rotary speed. The manual covers electrical connection, start and stop controls, cleaning, lubrication and routine inspection. Keep the rotation envelope clear, stop the vessel before opening an inlet or outlet, and follow the supplied manual during installation and commissioning.
The listed overall dimensions are 3050 × 1200 × 2580 mm. Allow additional access for loading, discharge, cleaning and maintenance when planning the installation. The final layout, electrical supply and any optional accessories should be confirmed against the unit-specific drawing or purchase specification.
Products Specification
| Parameter | Specification |
|---|---|
| Model | SED-1000VH-E |
| Equipment type | Two-arm V-type mixer for dry powders and granules |
| Full vessel volume | 1000 L |
| Working volume | 400 L |
| Loading factor | 40% |
| Maximum loading | 500 kg; source reference |
| Optimum loading | 280 kg; source reference |
| Cylinder diameter | 750 mm |
| Feed opening diameter | 400 mm |
| Outlet opening diameter | 150 mm |
| Motor power | 4 kW |
| Vessel rotary speed | 10 r/min |
| Overall dimensions (L × W × H) | 3050 × 1200 × 2580 mm |
| Vessel material | Stainless steel; grade not specified in checked sources |
Features
- 1000 L full volume and 400 L documented working volume
- Two-arm V-shaped vessel for tumbling dry powders and granules
- 4 kW drive with documented 10 r/min vessel speed
- 400 mm feed opening and 150 mm discharge opening
- Stainless-steel vessel and butterfly discharge valve described in the model manual
